Q.
What is water harvesting? How is it done?
A. Water harvesting refers to collection and storage of rainwater aimed at enhancing surface and groundwater resources.

The rainwater collected can be harvested for direct usage or for recharging the groundwater. The choice whether to store or recharge depends on the rainfall pattern and the hydrogeology of a particular region. For example, in places like Kerala and Mizoram, it rains throughout the year, barring a few dry periods. In such places, one can depend on a small domestic-sized water tank for storing rainwater, since the period between two spells of rain is short. Wherever impermeable sub-strata is available recharging will not be feasible. Hence, it would be ideal to opt for storage.

In dry areas like Delhi, Rajasthan and Gujarat, the total annual rainfall occurs only during 3 or 4 months of monsoon. The water collected during the monsoon has to be stored throughout the year; which means that huge volumes of storage containers would have to be provided. Since it is not possible to create such huge containers in urban areas (tends to be short of extra space), recharging is preferred in such situations. However, at individual levels, these tanks can be constructed.



Q. Is water harvesting techniques similar in urban and rural areas?
A. Water harvesting means the same in rural and urban areas. The only difference is in the scale of water harvesting. In rural areas, water harvesting is taken up along with soil conservation activities through a watershed management programme. On the other hand, in urban areas rooftop water harvesting is preferred due to lack of space.

Q. What are the advantages of water harvesting?
A.
bul_red.gif (868 bytes) In areas where there is inadequate groundwater availability or surface resources are either lacking or insufficient, rainwater harvesting can supplement the existing water supply schemes.

bul_red.gif (868 bytes) Reduces the load on sewer treatment plants by preventing the stormwater from entering in sewer treatment plants.


bul_red.gif (868 bytes) Recharging water into the aquifers help in improving the quality of existing groundwater through dilution and also helps in preventing the decline of water table

Q. Whether water harvesting could be done in buildings, which are already constructed?

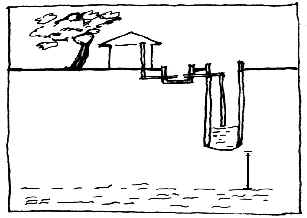

A. Rainwater harvesting is possible in existing buildings by connecting the rooftop rainwater pipes either to a recharge or a storage structure.


Q. I live in a place where the water table is shallow and quality of uninterrupted water supply is extremely good. Under this circumstances what is the need of water harvesting in my area?
A. Shallow water table does not guarantee that the water table will remain at the same level forever. Rapid urbanisation and industrialisation has seen many a cities facing problems due to groundwater depletion. The reason being the decreased rate of groundwater recharge compared to the higher rate of extraction of the same. In Delhi for example water table has gone down by the extent of 30 m at certain locations. Hence it would be a better to utilise fully the runoff of during rainy seasons for the groundwater rather than to push us into a crisis. (According to a study conducted by Central Groundwater board (CGWB) at various locations in India, it had been found that the intake capacity of the aquifer (the rate of recharge) is high if the static water table is more than 15 m below the ground level).

Q. Can we harvest the rainwater falling on the paved and unpaved areas?
A. Whether the harvested water is used for direct usage or for recharging the groundwater, it is of utmost importance to ensure that the rainwater collected is free of any pollutants that might be added either from the atmosphere or the catchment. While polluted water directly used for consumption would have an immediate impact on health, polluted water recharged into the groundwater would cause long-term problems of aquifer pollution. Damage done to aquifers by recharging polluted water is irreversible. Hence it is advisable not to go in for groundwater recharge in those areas where control over the quality of recharged water is not possible.


In establishments like industries, it is very necessary to ensure that the catchment surfaces are free of chemical wastes, fuels, lubricants etc. Water from lawns could be harvested, provided the use of chemical fertilisers and pesticides are avoided. While sedimentation and filtration can easily remove physical and biological impurities in water, it is difficult to remove chemical impurities.

Q. Can we use the water in the stormwater drain running along the colonies/roads for recharge?
A.The stormwater drains in the colonies could be used for groundwater recharge provided bathroom water is not discharged into them and periodic cleaning of these drains are taken up. It must also be ensured that under no circumstances the sewage enters the stormwater drain. However in the case of drains running along the roads/public places, there is no control over the quality of water that is discharged into the drains and hence it is advisable not to use this water for recharging.


Q. If I use rainwater from my rooftop to recharge the groundwater, will the benefits not disperse to other water users in the neighbourhood?
A. Groundwater is not static and does not have any boundaries. Hence the recharged water cannot be localised to the area where it is recharged. Rate of groundwater flow varies widely from place to place depending on the hydrogeology, sometimes being as low as a few millimetres per day. In Delhi, for example, the vertical hydraulic conductivity of the soil formations is more than the horizontal hydraulic conductivity, which means that the rate of vertical (downward) passage of water through soil pores or rock fissures is more than the rate of horizontal flow.

Presence of recharge wells in an area can influence the wells used for extracting water in it’s close proximity. It will also to some extent, benefit groundwater users in the neighbourhood. The benefits could be more equitably distributed if water harvesting is taken up at a community-level with each user playing an active role in recharging the groundwater.

Q. What are the costs of constructing water harvesting facilities?
A.Water harvesting techniques are site specific and hence the cost of installation varies from place to place. Moreover the cost depends on the amount of water to be harvested. Typically, installing a water harvesting system in a building would cost between Rs 3,000 to 30,000 for buildings of total plot area of about 300 sq. m. Some basic rates of construction activities have been given on table given below which may be helpful in calculating the total cost of a structure.

(If the rooftop rainwater outlets are widely scattered around the building, the amount of pipe required in connecting these outlets to the recharge or storage structure would be more. Thereby increasing the cost.)

                         Table: Unit cost of construction activities.

Item Unit Rate (Rs.)
Excavation in soils Cum 65.00
Excavation in rock Cum 110.00
Brickwork with cement mortar (1:6) Cum 1400.00
Plain cement concrete (1:3:6) Cum 1500.00

Reinforced cement concrete (1:2:4)
Including steel bars, shuttering etc.

Cum 2700.00

PVC piping for rainwater pipes
110 mm diameter

200 mm diameter


M
M


165.00

275.00

Making borehole in soft soil (with 150 mm diameter PVC casing)

M

165.00

Making deep recharge borewell metre
using mechanical rotary drilling

M 1300.00

                         Note: cubic metres (cum) = 1000 litres; metres (m)

Q. Is it conducive to harvest the first rain of the season?
A. Initial rainwater in urban areas is of poor quality because of air pollution and dirt from catchment areas. For harvesting good quality of rainwater, first rainwater should never be captured. This could be done by a first flush devise, which is a valve, or a simple device that ensures runoff from the first spell of rain is flushed out and does not enter the system. All types of contamination can be prevented to a large extent by ensuring that the runoff from the first 5-10 minutes of rainfall is not harvested.

Q. Are there any problems regarding bacteria in rainwater utilization?
A. Bacteriological contamination occurs in some cases due to mixing of bird droppings, human excreta, pesticides and other organic matter like leaf litter. This medium serves is conducive for bacteriological growth. This bacteriological contamination might result in some health problems. Therefore, it is always good to use the rainwater after treatment like chlorination or boiling.

Q. How can I treat water to render it safe for drinking?
A. Treatment of stored rainwater only makes sense if it is done properly and if hygienic collection and use of the water will ensure it does not suffer from re-contamination. There are several types of treatment possible, the most common being chlorination, boiling, filtration and exposure to ultraviolet or natural sunlight.

i) Chlorination: Chlorination is most appropriately used to treat rainwater if contamination is suspected due to the rainwater being coloured or smelling bad. It should only be done if the rainwater is the sole source of supply and the tank should first be thoroughly inspected to try to ascertain the cause of any contamination. Chlorination is done with stabilised bleaching powder (calcium hypochlorite - CaOCl2) which is a mixture of chlorine and lime. Chlorination can kill all types of bacteria and make water safe for drinking purposes. About 1 gm (approximately 1/4 tea spoon) of bleaching powder is sufficient to treat 200 litres of water.

ii) Chlorine tablets: Chlorine tablets are easily available in the market. One tablet of 0.5 g is enough to disinfect 20 litres (a bucketful) of water.

iii) Boiling: Boiling is a very effective method of purification and very simple to carry out. Boiling water for 10 to 20 minutes is enough to remove all biological contaminants.

iv) Direct sunlight: This can also be used to kill many of the harmful bacteria in water by exposing it in clear glass or plastic bottles for several hours. Although feasible in some circumstances, the water must be clear, the weather fine and the water cooled overnight before consumption.

Q. How can I test the quality of water?
A. Various water testing kits are sold at affordable prices by governmental and non-governmental agencies. In Delhi, these kits are available at:

a. Development Alternatives

B-32, Tara Crescent, Qutab Institutional Area,
New Delhi – 110 016

Tel: 696 7938, 656 5370, 685 1158

b. Central Pollution Control Board
Parivesh Bhavan
CBD-cum-office complex,
East Arjun Nagar,
Shahadra, New Delhi – 110 032

Tel: 244 7014, 2222 073, 2222 071

c. Delhi Test House
A-62/3, G.T. Karnal Road, Industrial Area

Opposite Hans Cinema
Azadpur, Delhi-110 003
Tel: 7437327, 7435509, 7427672

d. Shriram Institute for Industrial Research
19, University Road
Delhi-110 007

Tel: 7257267, 7257860

Q. What are the aspects to be taken care of for the maintenance of rainwater harvesting systems?
A. When a rainwater utilisation system is started in a housing complex, maintenance is essential. This would mean keeping the catchment clean, doing the first flushing properly and cleaning up the filters before the monsoon. Rainwater utilisation needs only simple maintenance and it costs involved are nominal.
